SDVoE 4K Video over IP

IP Multicast UHD Video Transceiver over 10Gb Managed Network, HDMI 2.0 4K 60Hz 4:4:4, Bi-directional IR, RS-232 & USB/KVM, PoE+, Ethernet pass-through, Analogue Audio Embedding, Analogue Audio Breakout, and HDCP 2.2



The Blustream IP500UHD Transceiver is a SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks.

The IP500UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals.

The IP500UHD-TZ provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB (KVM) and 1Gb Ethernet.

The IP500UHD-TZ is ideal for mission-critical 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.

ACM-500

Multicast Advanced Control Module for TCP/IP, RS-232 and IR control of Blustream SDVoE 10GbE Multicast Systems with Web-GUI



Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.

The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR.

The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.

Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

4K Video & Dante® over IP

IP Multicast UHD Video Transmitter over 1Gb Network , HDMI Loop-out, 2ch Dante Audio Transmitter/Receiver, Dual RJ45 & SFP Network Ports, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2



Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb Managed Network.Compatible with the current IP200 platform, the IP250UHD-TX/RX is an industry leading 4K HDCP 2.2 HDMI transmitter/receiver that, using visually lossless compression technology, delivers 10Gb HDMI, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built fibre SFP port.

The IP250UHD-TX/RX features dual RJ45 network ports for independent or combined HDMI and/or Dante signal distribution.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

4K Video over IP

IP Multicast UHD Video Transmitter over 1GB Network , Bi-directional IR, RS-232 & USB / KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2



Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch.

The IP200UHD-TX / RX is an industry leading 4K HDCP 2.2 HDMI transmitter/receiver that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

The IP200UHD-TX/RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.​

1080p Video Over IP

Contractor Series HD Video Transmitter over 100Mbps Network, HDMI Loop-Out, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding and Analogue Audio Breakout



High Definition Video over IP Transmitter. Our Contractor HD Multicast distribution platform allows distribution of AV and control signals over a 100Mbps network.

The IP50HD-TX is an industry leading 1080p HDMI transmitter that uses H.265 compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

ACM200

Advanced Control Module for Blustream IP200UHD and IP250UHD Multicast systems



Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR.

The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, audio and video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Uncompressed 18Gbps HDBaseT™ Extender

Advanced HDBaseT™ Extender Kit Supporting Uncompressed and Unconverted HDMI 2.0 4K 60Hz 4:4:4 up to 100m, Bi-directional IR, HDCP 2.3

The HEX18G-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.

The HEX18G-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

The HEX18G-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable.​

150m HDBaseT™ Extender

HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 100m (1080p up to 150m), Bi-directional IR & RS-232, EDID Management, ARC, Ethernet Pass Through, Audio Breakout, Bi-directional PoC, HDCP 2.2



Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility.The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion.
The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoC up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.

HDBaseT™ CSC Extender Set -100m

HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, EDID Management, HDMI Loop Out, Audio Breakout, Bi-directional PoC, HDCP 2.2



Our HEX100CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m). The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analogue stereo and digital coax audio breakout.

HDBaseT™ ARC Extender Set - 100m

HDBaseT™ Extender Set - 100m (4K up to 70m), Bi-directional IR & RS-232, Bi-directional PoC, HDMI Loop-out, Audio Breakout, ARC, 3 x LAN Switch, Supports HDCP 2.2



Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX100ARC-KIT-V2 extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable. The HEX100ARC-KIT-V2 also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Switchable HDMI / VGA HDBaseT™ Extender Set

HDBaseT™ Extender Set - 100m (4K up to 70m), Switchable HDMI / VGA inputs, Bi-directional IR, Bi-directional PoC



Our HEX100HDVGA-KIT extender set is an industry leading 4K UHD HDBaseT™ solution that delivers switchable HDMI and VGA inputs. The extender set also transmits Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable.

  • Auto signal sensing switches between HDMI and VGA / audio inputs, will display last input signal connected

  • Manual switching between inputs using toggle button or RS-232 control on either transmitter or receiver

  • Supports 4K UHD video up to 70m

  • Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)

  • Supports CEC bypass (Consumer Electronics Control) - HDMI only Supports full 3D

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

Multi Format HDBaseT™ CSC Extender Set

Multi Format HDBaseT™ Extender Set Supporting 4K up to 40m (1080p up to 70m) - Switchable HDMI, DisplayPort™ and USB-C Inputs with Auto Signal Sensing / Switching, Local HDMI Input on RX, Bi-directional IR, IP & RS-232 Control



The HEX70HDU-KIT extender set is an industry leading HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort at 4K to 40m (with 1080p up to 70m) over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification

  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m, Extends HDMI 1080p up to 70m

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos DTS-HD Master

  • Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)

  • Supports DisplayPort™ up to 4K UHD @ 60Hz 4:4:4, 4K @ 30Hz 4:4:4 DP1.2

  • Audio breakout to analog L/R audio and Coaxial digital (S/PDIF) outputs concurrently

  • Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232

HDBaseT™ USB Extender Set - 70m

HDBaseT™ USB Extender Set - 70m (4K 60Hz 4:2:0 up to 40m), USB 2.0 Extension, Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, and HDCP 2.2

The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m

  • HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps

  • USB Type-A connections support 5V 500mA output per port

  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions

  • Supplied with Blustream IR receiver and emitter

HDBaseT™ Extender Set - 70m

Our 4K HDBaseT™ extender set offers market leading features and outstanding value. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports CEC bypass (Consumer Electronics Control)

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports bi-directional IR from all input and output locations

  • Supplied with Blustream IR receiver and emitters

  • HDCP 1.4, HDCP 2.2 compliant

HDMI Extender Set - 40m

Slimline HDMI Extender Set - 40m @ 1080p (1080i up to 50m) & Bi-directional IR

Our Slimline EX40B-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.

  • Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)

  • Supports video resolutions 480i-1080p*

  • Supports Bi-directional IR from input and output locations

  • Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio

  • Supports full 3D signal display

  • Supplied with Blustream IR receiver and emitter

  • Requires local power at both transmitter and receiver

  • EDID management, HDCP 1.4 compliant

HDBaseT™ Transmitter

Our HEX70B-TX 4K HDBaseT™ Transmitter offers market leading features and outstanding value. The product transmits HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

The HEX70SL-TX 4K HDBaseT™ Transmitter offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

Our HEX70CS-TX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ Transmitter offers market leading features and outstanding value utilizing CSC technology with video down conversion. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m) and includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

HDBaseT™ Receiver

RX70CS : HDBaseT™ CSC Receiver - Supporting HDMI 2.0 4K 60Hz 4:4:4 & up to 40m (1080p up to 70m), ARC, Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, HDCP 2.2

HEX100CS-RX : HDBaseT™ CSC Receiver Supporting HDMI 2.0 4K @ 60Hz 4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, HDCP 2.2

HEX70CS-RX : HDBaseT™ CSC Receiver Supporting HDMI 2.0 4K @ 60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, HDCP 2.2

HEX70SL-RX : Slimline HDBaseT™ Receiver - 70m (4K up to 40m), Bi-directional IR, Bi-directional PoC

HDMI Splitter

4K HDMI Splitter with Audio Breakout and EDID Management

Our SP12AB-V2 / SP14AB-V2 / SP18 4K HDMI 2.0 splitter distributes a single HDMI source to two/four/eight simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently

  • Advanced EDID management

4-Way HDBaseT™ CSC Splitter - 70m

4-Way HDBaseT™ CSC Splitter - 70m (4K @ 60Hz 4:4:4 up to 40m), Audio Breakout, EDID Management and HDMI Loop Out

Our HSP14CS 4K HDBaseT™ CSC splitter distributes a single HDMI 2.0 4K @ 60Hz 4:4:4 source to 4 simultaneous HDBaseT™ outputs with independent downscaling of 4K video inputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. It transmits HDMI, Bi-directional IR and PoC up to lengths of 70m (40m 4K @ 60Hz 4:4:4) over a single CAT cable.

The 4-Way splitter also features audio breakout, EDID management and HDMI loop out for integrating local displays or cascading to multiple devices.

HDMI Switcher

4K HDMI 2.0 HDCP 2.2 Switch

Our SW21AB-V2/SW41AB-V2 is a 2-way/4-way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Our SW41HDBT is a 4-Way HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ switch utilising CSC technology to deliver HDMI and HDBaseT™ inputs to simultaneous HDMI / HDBaseT™ outputs. The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP. The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used in conjunction with our Blustream HDBaseT™ wall-plate solutions.

4-Way HDBaseT™ / HDMI Input Switch

4-Way HDBaseT™ / HDMI Input Switch - 4K 60Hz 4:4:4, Simultaneous HDMI / HDBaseT™ Output, Manual / Auto Source Switching, PoC to TX & RX, Audio Breakout, Web GUI with CEC Source & Display Control

Our SW41HDBT is a 4-Way HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ switch utilizing CSC technology to deliver HDMI and HDBaseT™ inputs to simultaneous HDMI / HDBaseT™ outputs. The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.

The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used in conjunction with our Blustream HDBaseT™ wall-plate solutions.


Wireless Presentation Switcher

Advanced Wireless Multi Format Presentation Switch featuring Miracast® and AirPlay. 4 x HDMI, 1 x HDMI Output, Multiview, Manual/Auto Source Switching, Seamless Switching, Localized WiFi hotspot, Audio Breakout, Web GUI

The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output.

The AMF41W provides enhanced features including Localized 2.4/5GHz WiFi hotspot, seamless switching, multiview presentation, video scaling and web GUI for control and configuration. The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, RS-232 and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.

Multi-Format Presentation Switchers

We have various type  presentation switchers from smallest 3x1 to 11x2 multi-format switcher and scalers.

Model:

MFP31    - 1HDMI, 1USB-C ,1Mini DisplayPort™ input which can be switched to 1HDMI output

AMF42AU-  3HDMI,1USB-C inputs which can be independently routed to 2HDMI,1HDBaseT™

MFP62    -  3HDMI, 1USB-C, 1 DisplayPort™ ,1VGA input which can be routed to 2 HDMI O/p

MFP72    - 7 Input 2 Output presentation switcher with in-built video scaling, advanced EDID

MFP112  -11 x 2 with in-built video scaling, audio embedding, de-embedding, EDID

4x4 Matrix Switcher with Video Wall and Multi-Viewer Feature

4x4 4K Seamless Switching HDMI / VGA Matrix, IR Routing, App, RS-232, IR & TCP/IP Control

Our MX44VW 4K HDMI / VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.

The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

  • Features 4 x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio instantaneous seamless video switching (Matrix and Video Wall modes)

  • Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)

  • HDMI output resolution fixed to 1080p @60Hz

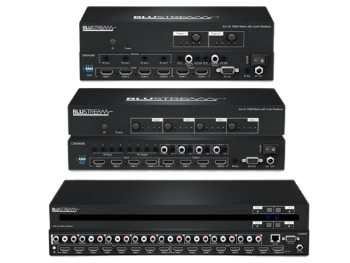

HDMI Matrix

4x2, 4x4, 8x8

The contractor HDMI matrix series supports

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • HDMI audio breakout to associated output analog L/R audio and coaxial digital outputs concurrently

  • Control via front panel, IR and RS-232, TCP/IP in 8x8

  • IR routing

  • Supplied with Blustream 5V IR receivers and emitters

  • 3rd Party drivers available for major control brands

  • Advanced EDID management

  • HDCP 2.2 compliant

Contractor 4x4 HDBaseT™ Matrix Kit - 70m

Contractor 4x4 HDBaseT™ Matrix Kit - 70m (4K up to 40m), Bi-directional IR, PoC, Simultaneous HDMI / HDBaseT™ on Output 1, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI, Includes 4 x HEX70B-RX HDBaseT™ Receivers

Our Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The C44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1 and a web browser interface module for control and configuration of the matrix.
The C44-KIT is supplied with 4 x HEX70B receivers.

4x4 HDBaseT™ CSC Matrix Kit - 70m

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The HMXL44CS-KIT is a HDMI 2.0 4K @ 60Hz 4:4:4 HDCP 2.2 Matrix package utilizing CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoC up to lengths of 70m over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix.
The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX receivers.

Contractor 6x6 HDBaseT™ CSC Matrix - 70m

Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m), Bi-directional IR, PoC, Simultaneous HDMI / HDBaseT™ on Output 1, Video Down-scaling on HDBaseT™ Outputs, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI

The C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilizing CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

6x6 HDBaseT™ CSC ARC Matrix - 70m

The HMXL66ARC HDBaseT™ Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Color Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).

The HMXL66ARC features enhanced audio routing via an integrated 20x6 audio matrix. This enables the audio both from displays and sources, to be embedded and routed through the system at the users discretion.

The HMXL66ARC includes a simultaneous HDBaseT™ / HDMI output on output 1, video smart scaling on all HDBaseT™ outputs, and PoC (Power over Cable) to the remote RX70CS HDBaseT™ receivers. A in-built web browser interface for configuration and control of the Matrix, along with RS-232 and IR pass-through to enable seamless 3rd party control integration.

Contractor 8x8 HDBaseT™ CSC Matrix - 70m



Our Contractor 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs, and a web browser interface module for control and configuration of the matrix.


8x8 HDBaseT™ CSC ARC Matrix - 70m

8x8 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m), ARC, Bi-directional IR, RS-

The HMXL88ARC HDBaseT™ Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL88ARC is an 8x8 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Color Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).

The HMXL88ARC features enhanced audio routing via an integrated 26x8 audio matrix. This enables the audio both from displays and sources, to be embedded and routed through the system at the users discretion.

The HMXL88ARC includes a simultaneous HDBaseT™ / HDMI output on output 1, video smart scaling on all HDBaseT™ outputs, and PoC (Power over Cable) to the remote RX70CS HDBaseT™ receivers. A in-built web browser interface for configuration and control of the Matrix, along with RS-232 and IR pass-through to enable seamless 3rd party control integration.

Custom Pro Matrix

Fully configurable 8x8 and 16x16 matrix

The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

  • 8x8 and 16x16 chassis available

  • 2-Way and 4-Way interchangeable input & output boards

  • Optional control boards: IR Routing, audio breakout with line level volume control

  • HDCP 2.2 compliant, 3rd Party drivers available for major control brands

  • Advanced EDID management

  • Pre-configured Pro Matrix models available

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Supports 4K UHD video up to 70m at 4K over HDBaseT™ (as per output board specifications)

  • Web interface module for control and configuration of Matrix

  • Control of Matrix via front panel, IR, RS-232 and TCP/IP

  • 2U Design for 19” rack mount integration - rack mounting kit included

In-line automation Processor

HDMI In-line Controller with IR, RS-232, CEC, Signal Sensing & 12V Trigger Outputs

Our HD11CTRL HDMI in-line controller is an automated room control solution including display on / off control via CEC, RS-232 and IR when a HDMI signal is sensed on the input.

External relay inputs allow third-party triggers for integration with devices such as sensors or switches. The HD11CTRL will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can be common problems when distributing HDMI signals especially 4K.

  • Automated in-line HDMI control module

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports resolutions up to 4K UHD 60Hz 4:4:4 8-bit (18Gbps)

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos DTS-HD Master

  • Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues

  • Relay control for interface to third-party devices such as automated projector screens

  • Contact closure input for connection from third-party devices such as sensors or switches

4K Resolution Scaler

SC12SP-V2 : The Blustream SC12SP-V2 is a 4K HDMI 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions. The SC12SP-V2 supports downscaling of up to 4K @ 60Hz 4:4:4 video to various lower resolution video formats. The SC12SP-V2 also includes audio breakout, advanced EDID management.

SC11HD-V2 : Our Blustream SC11HD-V2 is a HDMI 4K scaler, designed for installations with multiple displays that support different maximum video resolutions. The SC11HD-V2 is ideal for multi-room installations with multiple output resolution requirements.
The SC11HD-V2 supports downscaling of 4K (inc.HDR) video to 1080p and supports HDCP 2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.

4 Way Optical Switch

4-Way Optical Switch with Built-in DAC and Audio Conversion

Our OPT41AU is an advanced 4-way optical audio switch. Perfect for the integration of multiple audio sources with a soundbar. The OPT41AU also has a built in DAC and simultaneous digital and analog stereo audio outputs. The OPT41AU supports 192kHz sample rates and up to 24-bit resolution for enhanced sound reproduction.

  • Features 4 x optical S/PDIF digital inputs which can be switched to single optical output

  • Outputs optical digital, coaxial digital and analog left / right stereo audio concurrently

  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution

  • Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher

  • Ultra low jitter and high fidelity design

  • Input selection button on front panel to toggle between optical inputs

  • IR receiver on front panel to switch inputs and turn on / off audio outputs using supplied IR remote

  • External IR input can be used to extend IR with Blustream IR receiver cable

Dolby Audio and DTS Audio Down-mixing

HD12DB : The Blustream HD12DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within a HDMI signal into a stereo 2ch signal available on HDMI, optical and analog audio outputs. The HD12DB features a HDMI loop out to pass the original video and multi-channel embedded audio signal to compatible equipment, with a second HDMI output featuring video scaling of resolutions up to 4K @ 60Hz 4:4:4 video to various lower video formats.

DAC13DB : The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analog audio outputs.


Audio Converters

We have Digital Audio Converter with Dolby Audio and DTS Audio Down-mixing, Digital to Analog Converter (DAC) - Simultaneous Analog and Digital Output, Analog to Digital Audio Converter (ADC) and Digital Audio Converter.

Model:

DIG11AU -  Optical to optical and coax, or, coax to optical or coax

ADC11AU - Converts stereo audio input to both S/PDIF optical and coaxial digital PCM

DAC12AU - Converts either optical or coaxial digital to analog stereo L/R audio output,

DAC13DB - Convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an                              optical or coaxial audio signal into a stereo

HDMI Audio Embedder / De-embedder

Our SM11 HDMI signal manager has been designed to help solve HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that are becoming common problems when distributing HDMI signals especially 4K.

The SM11 also features de-embedding or embedding audio within the HDMI signal path, allowing you to breakout up to 7.1 audio signals. The SM11 supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports pass-through of HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master

  • HDMI audio de-embedded to both analog L/R audio and coaxial digital outputs concurrently (analog audio supports 2ch PCM only)

  • Supports CEC bypass (Consumer Electronics Control)

  • Extract audio with or without an actual display connected (SM11 acts as HDMI end-point)

Analogue Audio Delay

Analogue Audio Delay Processor with Volume Control

Our AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system.
The AD11AU can add a delay of up to 1 second selectable in 15 increments and has line-level volume adjustment of -75dB to 0dB.

  • In-line 2ch analogue audio delay with line-level volume control

  • Supports 48KHz / 24 bit sample rates

  • Selectable audio delay from 50-1,000ms

    - 0 - 500ms in steps of 50ms

    - 500 - 1,000ms in steps of 100ms

  • Adjustable line level volume control from -75dB to 0dB


Dante® Audio Solutions

Blustream have Dante Audio Encoder/Decoder and 4x4 Dante Audio Converter which  allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream matrix / distribution products to be connected as an audio source within a Dante® network, as well as converting a Dante® signal back to an analog audio signal. Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit, Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller), Encoder/Decoder is a plug & play device that is powered using PoE (Power over Ethernet) from any PoE network switch and also supports AES67 RTP audio transport.



Model:

DA44AU   - 4 x analog audio inputs that are converted to a Dante® compatible signal 4 x Dante® signals to analog audio outputs

DA11AEN - Encodes unbalanced or balanced 2-ch analog audio to a Dante® digital signal

DA11ADE - Decodes a Dante® digital signal to unbalanced or balanced 2-ch analog audio
